EV Training Systems
Hands-on learning platforms for battery management, power electronics, HVAC, and complete vehicle systems.
Power Electronic Training System
A comprehensive hands-on platform for power electronics training with real-time simulation capabilities.
- 50MHz oscilloscope
- Digital voltmeters & ammeters
- Variable power supplies
- Single & three-phase firing circuits
- Chopper control circuits
- Inverter firing circuits
- MCB protection & snubber circuits

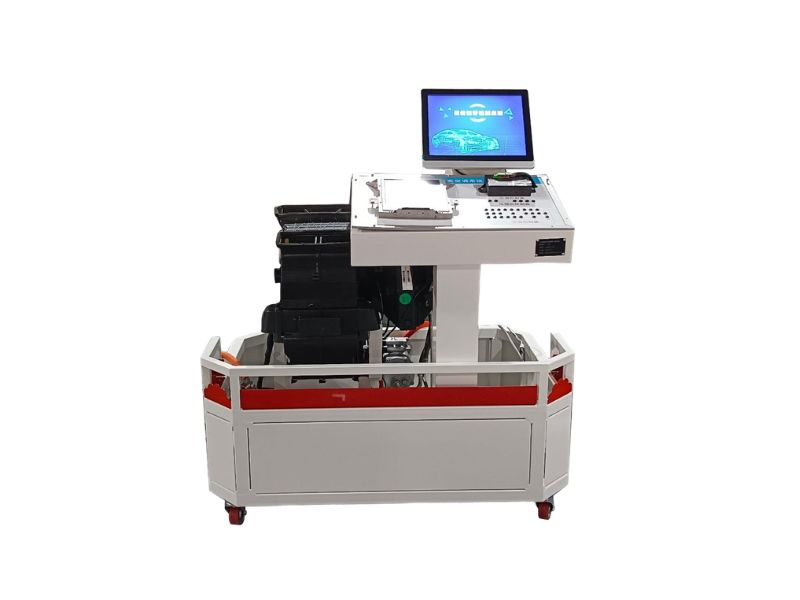

EV Car Air Conditioning System Trainer
Real BYD E5 air conditioning module with fault simulation and diagnostic capabilities.
- Real vehicle HVAC system
- Electric compressor operation
- 10-inch diagnostic terminal
- Fault simulation module
- BMS integration
- Interactive learning modules

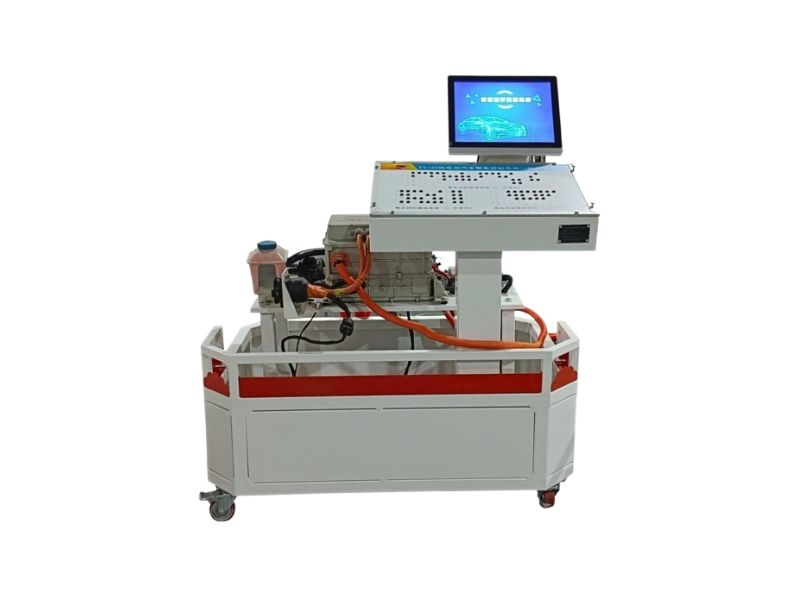

EV Car Control System Trainer
Electric power steering system training with original BYD E5 components.
- BYD E5 EPS components
- Torque & corner sensors
- EPS motor integration
- Real-time fault simulation
- CAN communication interface
- Safety interlocks
EV Car Electrical System Trainer
Complete body electrical system with lighting, wipers, horn, and power windows.
- Real EV body components
- Lighting system circuits
- Wiper & horn systems
- Power window circuits
- Fault simulation module
- Interactive circuit analysis

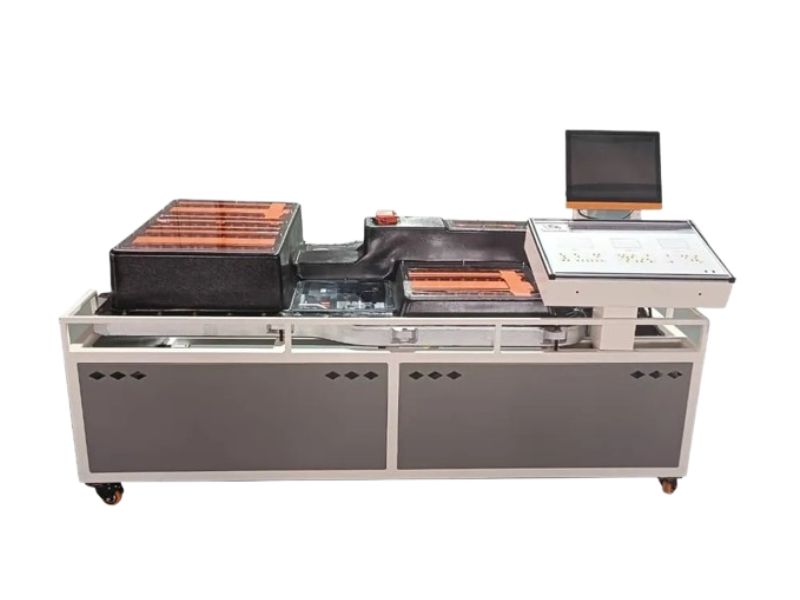

EV Car Battery Management System Trainer
Original BYD E5 battery pack with charge/discharge management and diagnostics.
- BYD E5 battery pack
- Charge/discharge management
- Insulation detection
- Fault simulation module
- BMS integration
- Safety interlocks
EV Car BMS Simulation Trainer
Lithium iron phosphate battery pack with real-time monitoring and safety features.
- LiFePO4 battery pack
- BMS hands-on training
- Safety switches & emergency stop
- Real-time monitoring display
- Battery parameter analysis
HVAC Demo Kit
Complete EV HVAC system simulation with heating and cooling functions.
- EV HVAC system simulation
- Electric compressor operation
- Heating & cooling functions
- Refrigerant cycle demonstration
- BMS integration
BMS Training Kit
Comprehensive battery management training with multiple chemistry support.
- Li-Ion, LFP, Lead-Acid, NMC support
- 3S–16S configurations
- 10V–60V, 10A–100A range
- CAN, RS485, UART, I²C communication
- BatBot software interface
- SOC/SOH monitoring
EV Car Power Steering System Trainer
Hands-on electric power steering (EPS) training with authentic components.
- BYD E5 EPS system
- Torque & angle sensors
- EPS motor integration
- Fault simulation module
- CAN communication
Electric Vehicle Training Workbenches
Complete diagnostic and maintenance setups for 2-wheeler and 3-wheeler EVs.

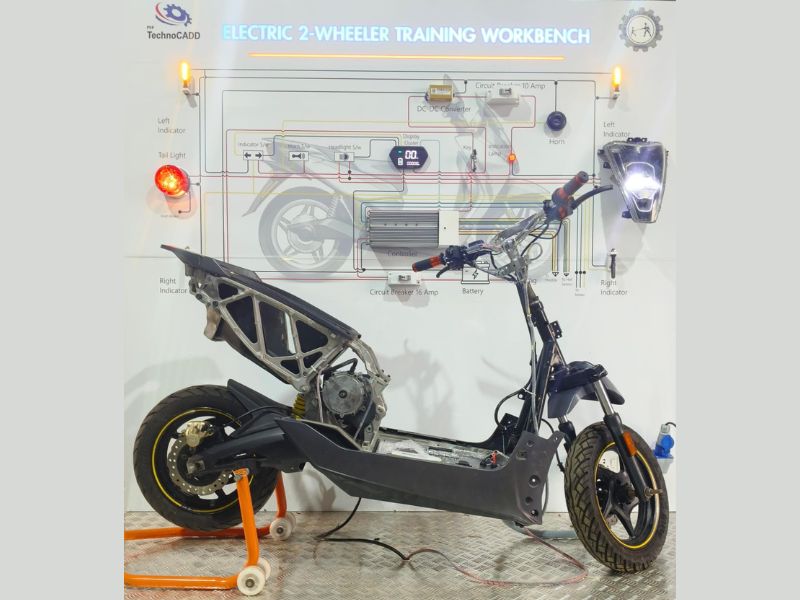

Electric 2-Wheeler Training Workbench
Comprehensive two-wheeler EV training platform with real-time monitoring.
- Lithium-ion battery system
- Brushless DC motor
- Smart dashboard integration
- Real-time data monitoring
- Battery performance testing
- Hands-on maintenance training
Electric 3-Wheeler Training Workbench
Diagnostic and maintenance platform for electric three-wheelers.
- Real-time data monitoring
- Battery performance testing
- Motor diagnostics
- Controller analysis
- Modular part replacement
- Fault diagnosis training
Electric Vehicle Chargers
Level 1, 2, and 3 charging systems with complete safety features and mobile app integration.
Level 1 AC Charger
3.3 kW – 10 kW three-phase charging solution
- Input: Three Phase 415V
- Output: 240V/socket
- 3 charging outlets
- Overcurrent/overvoltage protection
- Emergency stop button
- Mobile app (Android & iOS)
Level 2 AC Charger
7.4 kW – 22 kW fast AC charging
- Output: 7.4kW, 11kW, 22kW
- 1 or 2 charging outlets
- 15A, 32A rated current
- In-built metering
- Ground fault protection
- Mobile app integration
Level 3 DC Fast Charger
15 kW – 400 kW DC rapid charging
- Output: 15-400 kW
- 100A, 200A rated current
- CCS, CHAdeMO connectors
- In-built metering
- Emergency stop
- Cloud-based monitoring
Industrial Automation Training Equipment
Pneumatic, hydraulic, PLC, and Industry 4.0 training systems for technical education.
Pneumatic Trainer Kit
Complete pneumatic automation training with Mitsubishi PLC.
- Mitsubishi PLC (16 Digital I/O)
- ISO standard valves
- Compact movable frame
- Name tagging for components
- Interdisciplinary use
- 15+ practicals
Hydraulic Trainer Kit
Transparent hydraulic system with IoT capabilities.
- Transparent valves & hoses
- Single-phase power pack
- 15+ hands-on practicals
- IoT-based experiments
- Glossy extrusion frame
- Component mounting system

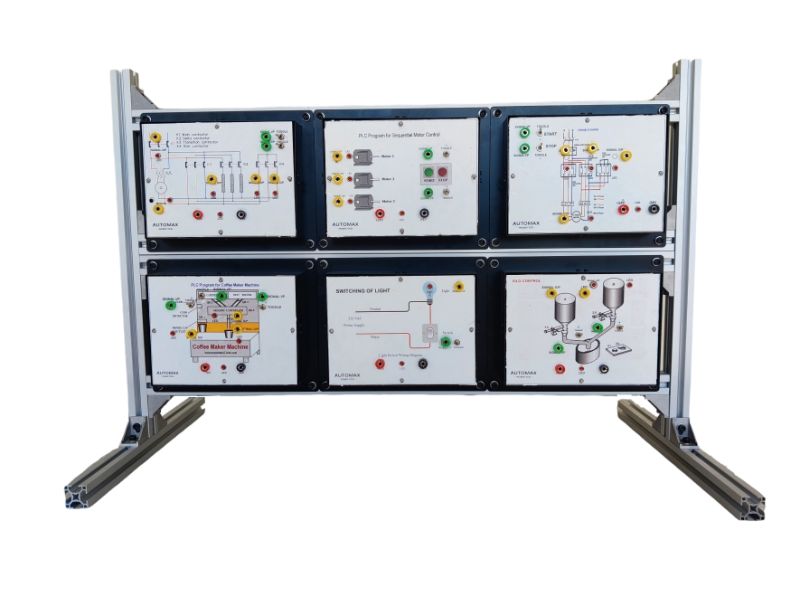

PLC Module Kit
Programmable Logic Controller training platform.
- 20+ educational experiments
- Real-time hardware simulation
- Compact table-mount design
- Customizable programs
- Two working sides
- User-friendly interface
Industry 4.0 Educational Setup
Complete smart manufacturing demonstration system.
- Independent stations
- Color & shape sorting
- Assembly & inspection stations
- HMI for system monitoring
- IoT-based connectivity
- Flexible programming

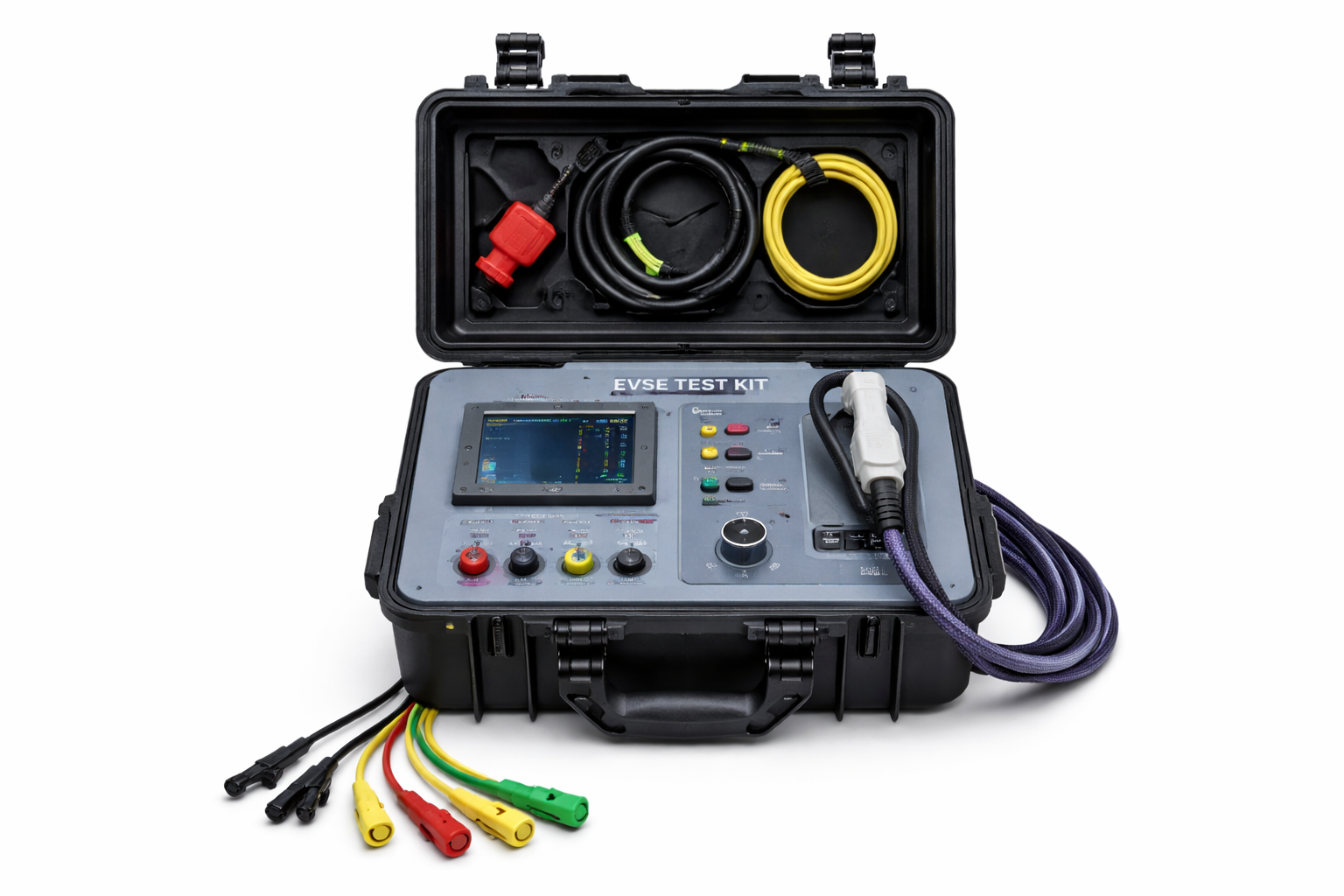

AC EVSE Test Kit
Comprehensive EV charger testing equipment.
- Proximity & control pilot testing
- Charging state verification
- Protective earth testing
- Cable current setting
- CP waveform capture
- IEC 61851-1 compliant

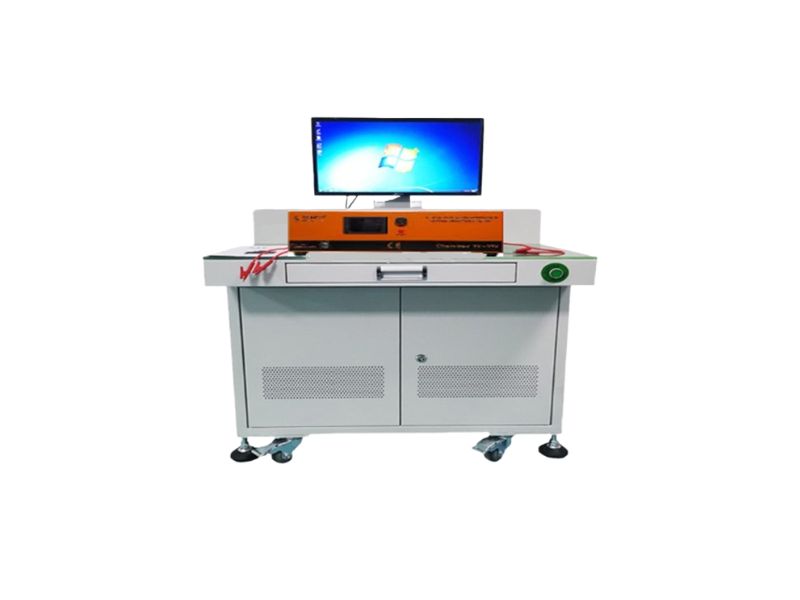

Battery Charger & Discharger
Multi-chemistry battery testing system.
- Li-Ion, LFP, Lead-Acid support
- AC (L1/L2) & DC fast modes
- CC, CV, trickle stages
- Overcharge/overcurrent protection
- Thermal management
- Multiple connector types
Additional Training Equipment
Disc/Drum Brake System on Stand
ABS braking system demonstration using Volkswagen Santana components.
- ABS braking simulation
- ABS pump & sensors
- Motorized brake disc
- Emergency braking scenarios
- Real vehicle components
- Hands-on diagnostics
Launch Tool Kit Trolley
Professional tool storage for automotive and EV maintenance labs.
- Heavy-duty steel body
- 7 sliding drawers
- Centralized locking system
- Smooth swivel casters
- Durable finish
- Launch brand quality
Setup Your Academic Lab Today
Contact us for custom lab configurations, bulk orders, and educational institution pricing.
Request Equipment Catalog
